The chart highlights how little mRNA exists in total RNA—typically just 1–5%. This means most conventional RNA preparations are dominated by rRNA, creating noise in gene expression studies.

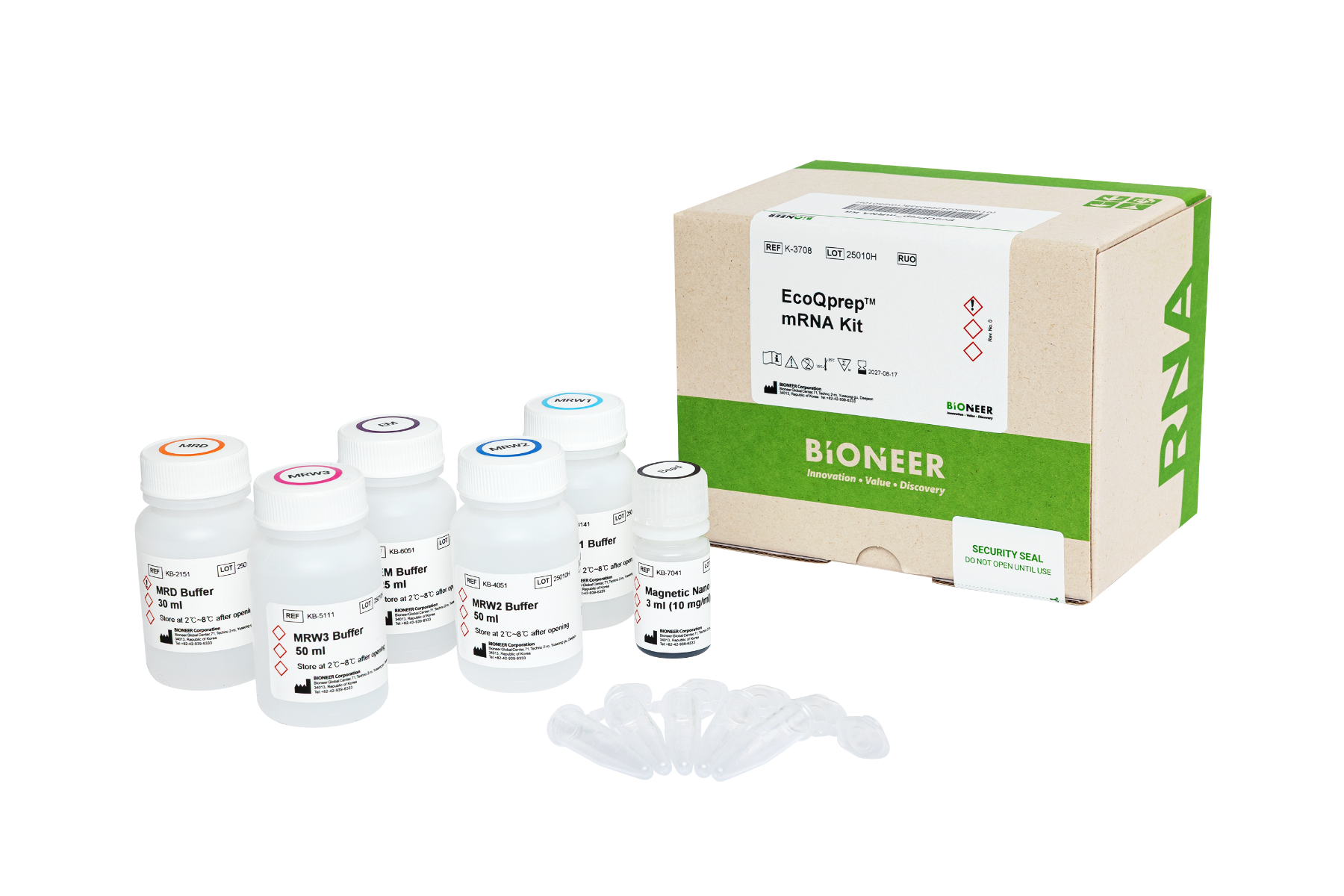

By contrast, the EcoQprep™ mRNA Kit specifically isolates the mRNA, not total RNA, enabling researchers a cleaner, more efficient sample for accurate gene expression analysis.
Traditional column methods take multiple binding and washing steps. EcoQprep™ streamlines the process, reducing processing time by 70%.
mRNA extraction is complete in just 10 minutes.
While competitors charge up to 3X or 2X per preparation, BIONEER delivers the same workflow at a fraction of the cost. EcoQprep™ is available at a similar cost to competitor total RNA isolation kits.

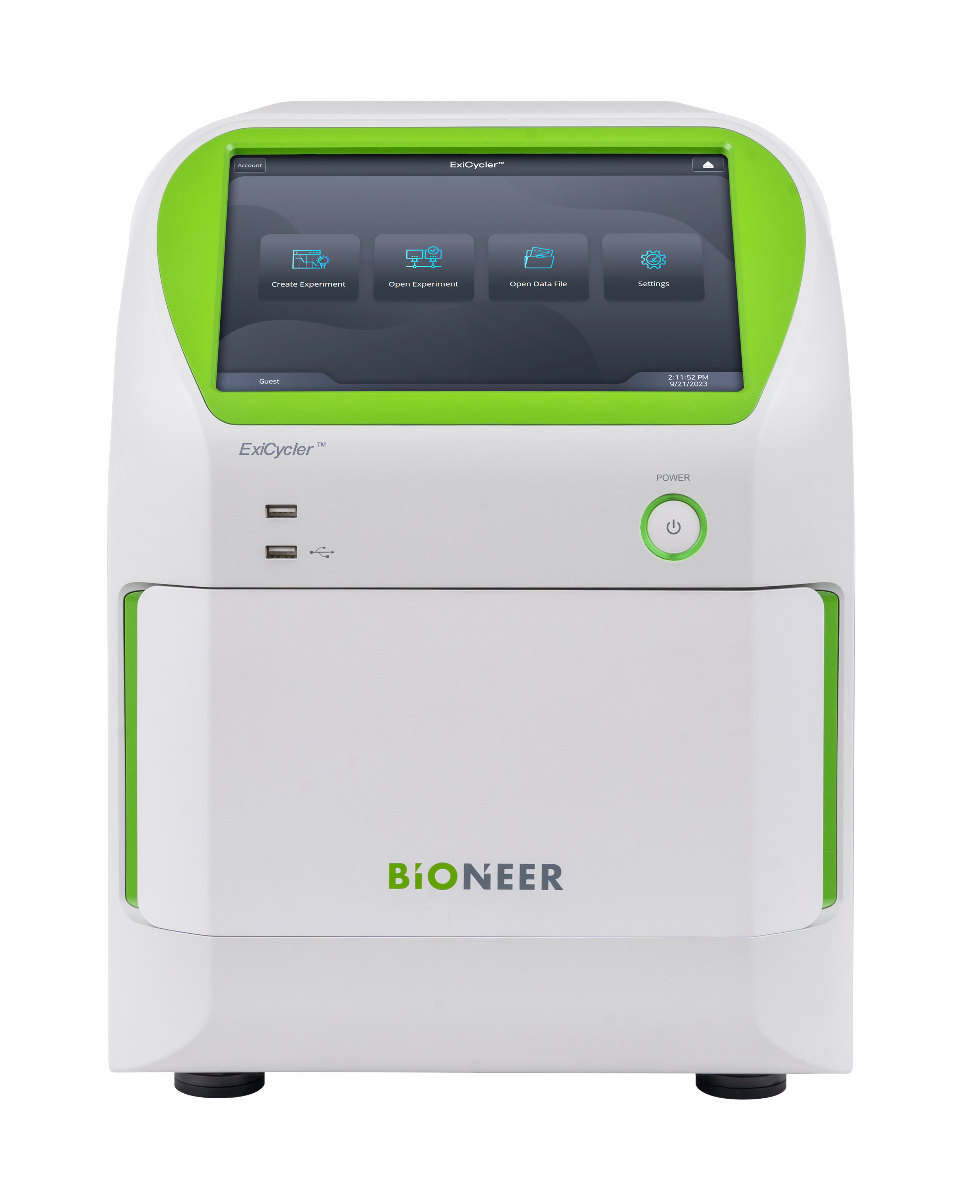

With a ramp rate of up to 10°C/sec, achieved through a specialized alloy block and enhanced thermal-control algorithms, the system maximizes experimental efficiency.
| Model | Ramp Rate | Run Time |
|---|---|---|
| V4 (Normal Block) | 4.5°C/sec | 1h 10min |
| V5 (Fast Block) | 10.0°C/sec | 44min |
With enhanced optical technology, the system supports up to six independent channels without a reference dye.
| Filter | Excitation (nm) | Emission (nm) | Fluorescent Dye |
|---|---|---|---|
| F0 | 430 | 480 | ATTO425 |
| F1 | 470 | 520 | FAM, SYBR® Green I |
| F2 | 515 | 550 | JOE, TET |
| F3 | 550 | 585 | TAMRA, Cyanine3 |
| F4 | 570 | 615 | Texas Red®, ROX |
| F5 | 630 | 690 | Cyanine5 |

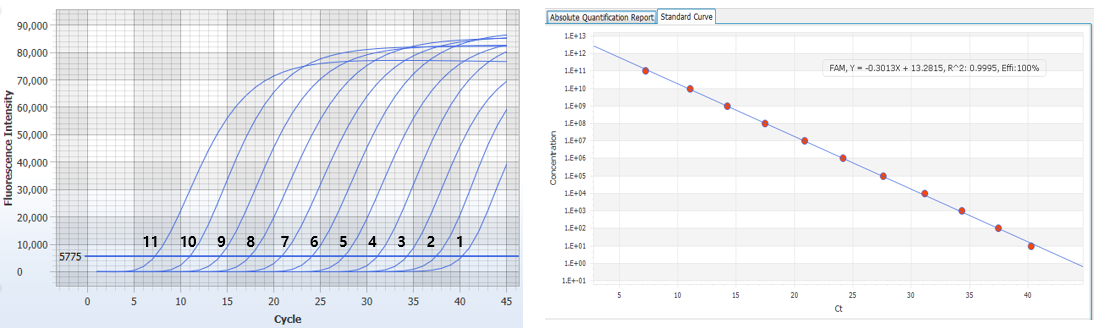

With an enhanced temperature-control algorithm and an advanced optical technology, it is possible to control precise temperature and detect high-sensitivity fluorescence.
Complete your workflow from extraction to analysis with our integrated platforms.
